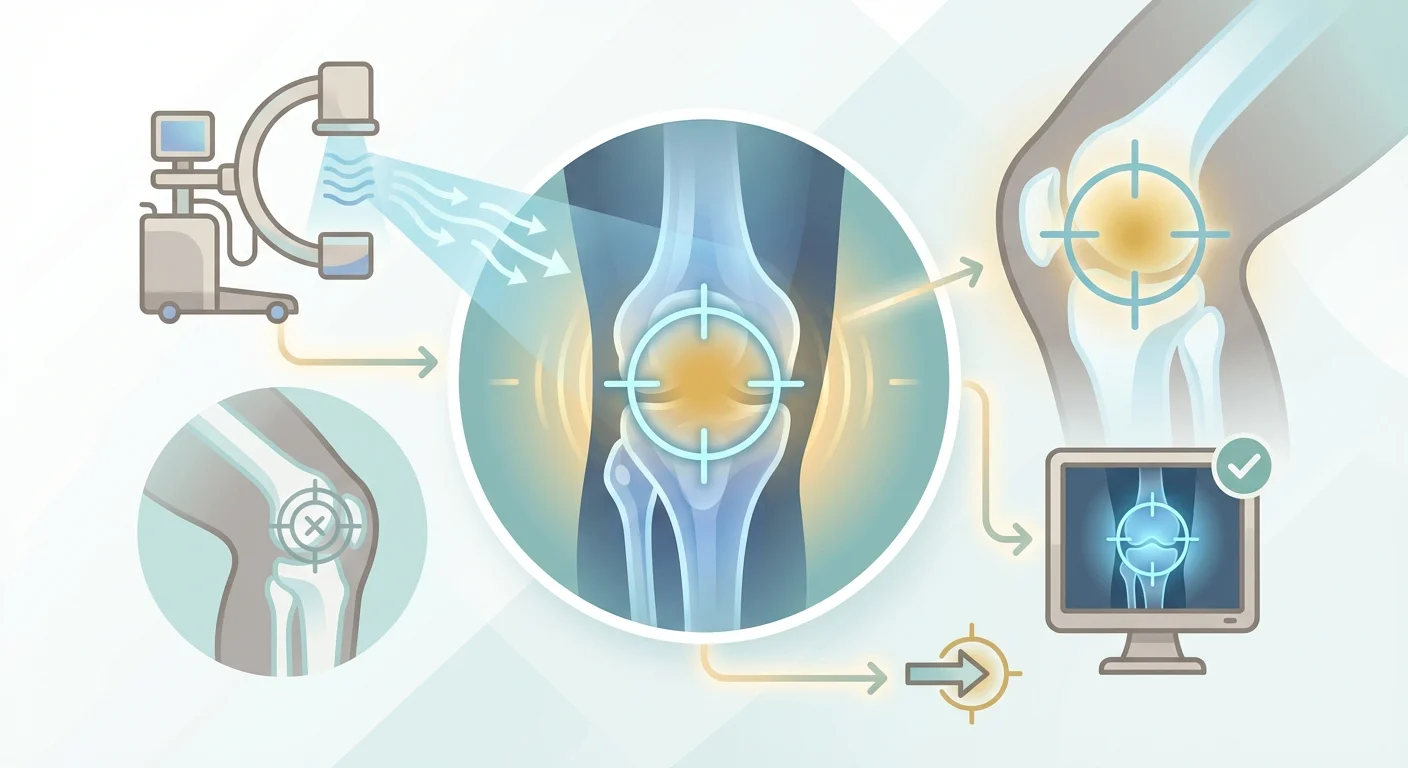

Fluoroscopy-Guided Injection: A Technical Overview

Technical Overview: Fluoroscopy-Guided Knee Injections

This guide provides detailed information about fluoroscopy-guided injection technology—what it is, how it works, and why it produces better outcomes than blind injection techniques.

---

Part 1: What Is Fluoroscopy?

Definition

Fluoroscopy is a real-time X-ray imaging technique that allows physicians to visualize internal structures during procedures. Unlike static X-rays, fluoroscopy provides continuous imaging, similar to an X-ray “movie.”

How It Works

Basic Components:

1. X-ray source - Generates radiation beam
2. Image intensifier - Converts X-rays to visible image
3. Display monitor - Shows real-time images
4. C-arm - Movable arc positioning source and detector

The Process:

1. X-rays pass through the body
2. Dense structures (bone) block more radiation
3. Soft tissues allow more radiation through
4. Differences create contrast on the image
5. Continuous imaging shows needle movement

Radiation Considerations

Modern fluoroscopy uses minimal radiation:

• Equivalent to a few X-rays
• Far less than a CT scan
• Considered safe for occasional procedures
• Exposure time is brief (seconds to minutes)

---

Part 2: Accuracy Data

Research Findings

Multiple peer-reviewed studies have compared blind vs. fluoroscopy-guided injections:

Jackson et al. (JBJS)

• Blind accuracy: 77%
• Fluoroscopy accuracy: 100%
• Confirmation method: Arthroscopy

Berkoff et al. (Clinical Journal of Sport Medicine)

• Blind accuracy: 72%
• Fluoroscopy accuracy: 100%
• Study population: 77 patients

Park et al.

• Blind accuracy: 75%
• Fluoroscopy accuracy: 99%
• Large population study

Where Missed Injections Go

Anatomical analysis of inaccurate injections shows medication deposited in:

Location	Frequency
Hoffa’s fat pad	35% of misses
Suprapatellar bursa	25% of misses
Pes anserine region	20% of misses
Subcutaneous tissue	15% of misses
Other locations	5% of misses

---

Part 3: The Procedure

Pre-Procedure

Patient Preparation:

• No fasting required
• Wear loose, comfortable clothing
• Arrive 15 minutes early
• Bring medication list
• Bring insurance cards

Medical Review:

• Confirm diagnosis and indication
• Review allergies (contrast, medications)
• Check for contraindications
• Verify no blood thinners (if applicable)

Equipment Setup

Room Components:

• Fluoroscopy C-arm unit
• Sterile procedure tray
• Contrast dye (iodinated)
• Local anesthetic
• Treatment medication (HA, steroid)
• Monitoring equipment

Sterile Supplies:

• Antiseptic solution
• Sterile drapes
• Appropriate gauge needles
• Syringes
• Bandages

Step-by-Step Procedure

1. Positioning (2-3 minutes)

• Patient positioned supine or seated
• Knee positioned for optimal access
• C-arm positioned over knee

2. Preparation (3-5 minutes)

• Skin cleaned with antiseptic
• Sterile drape placed
• Local anesthetic administered
• Wait for numbing effect

3. Needle Insertion (5-7 minutes)

• Fluoroscopy activated
• Needle advanced under visualization
• Real-time guidance to joint space
• Approach adjusted as needed

4. Confirmation (1-2 minutes)

• Small amount of contrast injected
• Contrast outlines joint space
• Confirms intra-articular position
• Images saved for documentation

5. Medication Delivery (1-2 minutes)

• Treatment medication injected
• Distribution observed on fluoroscopy
• Needle removed
• Site bandaged

Post-Procedure

Immediate:

• Brief rest (5-10 minutes)
• Ambulate to confirm stability
• Receive aftercare instructions
• Schedule follow-up if needed

Same Day:

• May drive self home
• Resume normal activities
• Ice if minor discomfort
• Avoid strenuous activity for 24-48 hours

---

Part 4: Contrast Dye

Purpose

Contrast dye (typically iodinated) provides definitive confirmation of needle placement before medication delivery.

How It Works

1. Small amount (0.5-1ml) injected through needle
2. Contrast appears bright white on fluoroscopy
3. If in joint, outlines articular surfaces
4. Pattern confirms intra-articular vs. extra-articular

Contrast Patterns

Correct Placement:

• Smooth outline of joint surfaces
• Fills joint space evenly
• No leakage outside joint capsule

Incorrect Placement:

• Irregular distribution
• Remains localized (not spreading)
• Tracks along soft tissue planes

Allergy Considerations

For patients with iodine contrast allergy:

• Pre-medication protocols available
• Alternative contrast agents exist
• Ultrasound guidance can be substituted
• Discuss with provider beforehand

---

Part 5: Comparison to Other Techniques

Blind (Landmark-Guided)

Factor	Blind	Fluoroscopy
Accuracy	70-80%	100%
Confirmation	Feel only	Visual + contrast
Time	5-10 min	15-20 min
Cost	Lower	Higher (but covered)
Equipment	Minimal	Specialized

Ultrasound-Guided

Factor	Ultrasound	Fluoroscopy
Accuracy	96-100%	100%
Visualization	Soft tissue + needle	Bone + contrast
Radiation	None	Minimal
Portability	High	Lower
Confirmation	Real-time	Contrast definitive

When Each Is Preferred

Fluoroscopy preferred:

• Obese patients
• Complex anatomy
• Previous surgery
• Need for definitive confirmation
• Calcified or bony landmarks helpful

Ultrasound preferred:

• Radiation concern
• Soft tissue visualization needed
• Portable requirement
• Serial procedures

---

Part 6: Clinical Outcomes

Pain Relief Comparison

Studies comparing outcomes by guidance method:

Outcome	Blind	Guided
Pain reduction	Variable	Consistent
Duration of relief	Shorter	Longer
Need for repeat	Higher	Lower
Patient satisfaction	60-70%	85-95%

Why Accuracy Affects Outcomes

When medication is deposited extra-articularly:

• No direct joint surface coating
• Limited anti-inflammatory effect
• Reduced mechanical lubrication
• Systemic absorption instead of local effect

Long-Term Implications

Accurate treatment allows:

• Proper evaluation of treatment response
• Informed decisions about next steps
• Avoiding premature surgical referral
• Maximizing conservative care window

---

Part 7: Provider Qualifications

Who Performs Fluoroscopy-Guided Injections

Interventional Pain Management Physicians

• Fellowship-trained in image-guided procedures
• Regular use of fluoroscopy
• High volume of injection procedures

Sports Medicine Physicians

• Often fellowship-trained in musculoskeletal procedures
• May use fluoroscopy or ultrasound
• Focus on athlete and active patient populations

Interventional Radiologists

• Extensive imaging expertise
• May perform joint injections
• Access to full imaging capabilities

Some Orthopedic Surgeons

• Particularly those with sports medicine focus
• Variable use of imaging guidance
• May prefer surgical suite access

Questions to Ask

1. “Do you use fluoroscopy guidance for knee injections?”
2. “How many guided injections do you perform annually?”
3. “Will contrast be used to confirm placement?”
4. “Can I see the images during/after the procedure?”

---

Part 8: Medicare Coverage

Coverage Details

Medicare Part B covers:

• Fluoroscopy guidance (CPT 77002)
• Knee joint injection procedure
• Hyaluronic acid medication
• Contrast material

No Additional Patient Cost

The imaging guidance is included in procedure coverage—patients don’t pay extra for this higher-quality approach.

Documentation Requirements

For coverage:

• Medical necessity established
• Diagnosis code for knee osteoarthritis
• Conservative treatment documented
• Procedure notes with imaging confirmation

---

Part 9: Safety Profile

Risks of Fluoroscopy-Guided Injection

Minimal Risks:

• Brief radiation exposure (equivalent to 2-3 X-rays)
• Contrast allergy (rare, pre-screening performed)
• Infection (less than 0.1% with sterile technique)
• Bleeding at puncture site (minor)

Serious Complications:

• Extremely rare with proper technique
• No significant difference from blind injection
• Benefits far outweigh minimal risks

Contraindications

Relative contraindications:

• Pregnancy (radiation concern)
• Severe contrast allergy (alternatives available)
• Skin infection at site (delay procedure)
• Uncontrolled bleeding disorder

---

Summary: Why Fluoroscopy Matters

1. 100% accuracy ensures medication reaches the joint
2. Contrast confirmation provides definitive proof
3. Visual documentation creates permanent record
4. Consistent outcomes due to reliable delivery
5. Covered by Medicare at no additional cost

For patients with knee osteoarthritis seeking optimal treatment outcomes, imaging-guided injection represents the gold standard in technical accuracy.

---
