Gel Shots for Bone on Bone Knees: Do They Work?

---

What Are Gel Shots?

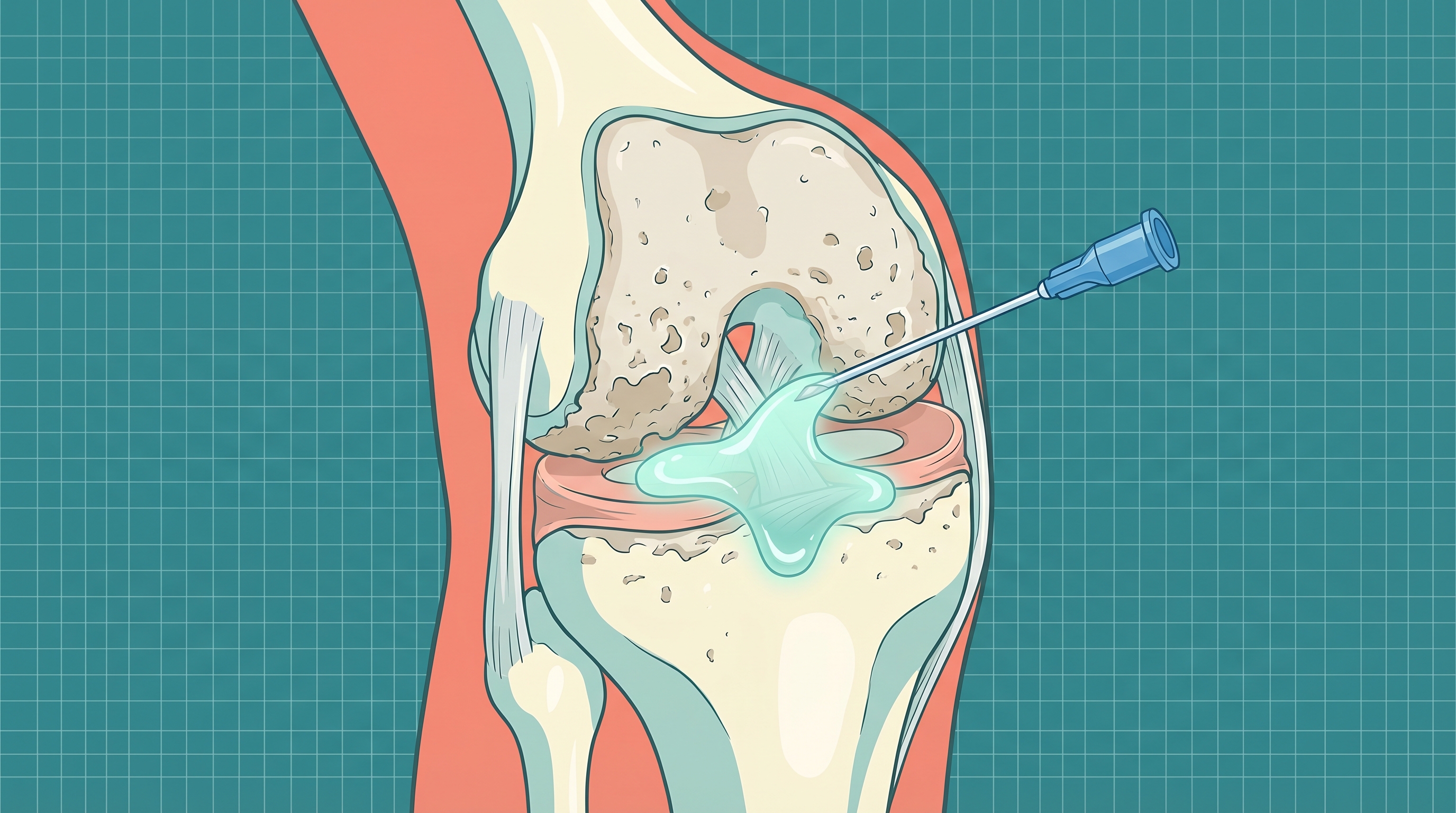

Gel shots — known medically as viscosupplementation or hyaluronic acid (HA) injections — involve injecting a gel-like substance into the knee joint to restore lubrication and cushioning. The injected material is hyaluronic acid, a molecule that occurs naturally in healthy joint fluid.

In a normal knee, synovial fluid contains high concentrations of hyaluronic acid. This fluid acts like motor oil in an engine: it reduces friction, absorbs shock, and allows smooth movement. As osteoarthritis progresses to the bone-on-bone stage, the concentration and quality of hyaluronic acid in the joint fluid declines significantly. The fluid becomes thinner, less effective at lubrication, and less able to protect the remaining joint surfaces.

Gel shots supplement this depleted fluid. The injected hyaluronic acid:

• Lubricates the joint surfaces, reducing friction and grinding
• Cushions the bones, providing a shock-absorbing layer
• May reduce inflammation through direct anti-inflammatory effects
• May stimulate the joint to produce more of its own hyaluronic acid

Do Gel Shots Work for Severe Arthritis?

This is the central question for anyone with bone-on-bone knees. The honest answer: they do not work for everyone, but the evidence shows they help a significant majority of patients, even those with the most advanced disease.

The Key Research

The surgery delay study. A large analysis of US insurance claims data published in Osteoarthritis and Cartilage examined patients with severe knee osteoarthritis (Kellgren-Lawrence Grade 4). Among those who received hyaluronic acid injections, 75% delayed knee replacement surgery by 7 or more years. The overall population delayed surgery by an average of 3.6 years compared to those who did not receive viscosupplementation.

OARSI conditionally recommends viscosupplementation in their 2019 guidelines for patients with knee OA, noting particular potential benefit for patients who have not responded to first-line treatments.

A 2015 meta-analysis in the Journal of Arthroplasty found that viscosupplementation provided clinically meaningful pain relief in patients with all grades of knee osteoarthritis, including Grade 4.

Why Some Patients Respond and Others Don’t

Several factors influence whether gel shots will work for a particular patient:

Injection accuracy. This is the single most important variable. Studies consistently show that blind (non-guided) knee injections miss the joint space 20 to 30% of the time. When the gel goes into the wrong tissue, it cannot lubricate the joint surfaces. Imaging-guided injections using fluoroscopy or ultrasound have accuracy rates approaching 100%. If you had gel shots without imaging guidance and they did not work, the treatment may not have failed — the delivery may have failed.

Severity pattern. Patients with bone-on-bone changes in one compartment (medial or lateral) tend to respond better than those with diffuse, multi-compartment disease. The gel can still lubricate the compartments that retain some joint space.

Body weight. Higher body weight increases mechanical forces that the gel must buffer against. While overweight patients still benefit, combining gel shots with weight management improves outcomes.

Expectations. Gel shots reduce pain and improve function, but they do not restore a bone-on-bone knee to normal. Patients who understand this have more realistic expectations and higher satisfaction.

What to Expect From the Procedure

Before the Injection

Your doctor will review your X-rays and symptoms to confirm that you are a candidate. No special preparation is typically required. If you take blood thinners, your doctor may discuss whether to adjust the timing of your medication around the procedure.

During the Injection

The procedure takes approximately 15 to 30 minutes. With imaging guidance:

1. The knee is cleaned and prepared
2. Local anesthetic may be applied to the skin
3. Under fluoroscopic (real-time X-ray) or ultrasound guidance, a needle is positioned precisely within the joint space
4. If there is excess fluid (effusion) in the joint, it may be drained first
5. The hyaluronic acid gel is injected into the joint
6. The needle is removed and a small bandage applied

Most patients describe the discomfort as mild — comparable to a blood draw. The imaging guidance adds a few minutes but dramatically increases accuracy.

After the Injection

• You can typically walk out of the office and drive home
• Mild soreness or swelling at the injection site is normal for 24 to 48 hours
• Ice the knee for 15 to 20 minutes several times during the first day
• Avoid strenuous activity for 48 hours
• Light activity like short walks can usually resume the next day

Timeline for Results

Gel shots are not like cortisone. They do not provide overnight relief. The typical timeline:

• Week 1-2: Mild improvement or no change; some patients have temporary increased soreness from the injection itself
• Week 3-4: Gradual improvement in pain and stiffness
• Week 4-8: Most patients reach their peak benefit
• Month 3-12: Benefits are maintained; gradual decline may occur toward the end of this window

The total duration of benefit varies by patient but typically ranges from 6 to 12 months per treatment cycle. Many patients repeat the treatment when symptoms return.

Available Gel Shot Brands

Several FDA-approved hyaluronic acid products are available, differing primarily in their injection schedule and molecular weight:

Single-injection products:

• Synvisc-One — one injection per treatment cycle (hylan G-F 20)
• Gel-One — one injection per treatment cycle
• Monovisc — one injection per treatment cycle
• Durolane — one injection per treatment cycle (non-avian)

Three-injection series:

• Euflexxa — three weekly injections (non-avian)
• Supartz FX — three to five weekly injections
• Orthovisc — three to four weekly injections

Three-to-five-injection series:

• Hyalgan — three to five weekly injections
• Genvisc 850 — three to five weekly injections

Your doctor will recommend a specific product based on your insurance coverage, joint condition, and clinical preference. The evidence does not clearly show that any one brand is superior to the others for bone-on-bone knees. The accuracy of injection placement is more important than the brand used.

Medicare and Insurance Coverage

Medicare Coverage

Medicare Part B has covered viscosupplementation for knee osteoarthritis since 1997. The specific requirements are:

• A diagnosis of knee osteoarthritis (confirmed by X-ray)
• The injection must be performed by a licensed provider
• FDA-approved hyaluronic acid products must be used
• Treatment can be repeated (typically every 6 months, though specific policies may vary)

Medicare typically covers 80% of the approved amount after you meet your Part B deductible. Supplemental insurance (Medigap) may cover the remaining 20%. Medicare Advantage plans generally cover viscosupplementation but may have different prior authorization requirements.

Private Insurance

Most private insurance plans cover viscosupplementation, though some require prior authorization or have step-therapy requirements (trying other treatments first). Check with your specific plan for coverage details.

For more detailed insurance information, see our Medicare coverage guide and insurance coverage article.

Gel Shots vs. Other Injections

Gel Shots vs. Cortisone

These two injection types serve different purposes:

• Cortisone provides fast anti-inflammatory relief (days) but wears off in weeks to months. Repeated cortisone may accelerate cartilage breakdown. Best for acute flare-ups.
• Gel shots provide slower-onset but longer-lasting relief (months). They lubricate rather than suppress inflammation. May be protective of remaining cartilage. Best for ongoing management.

Many patients benefit from both: cortisone for acute flare management and gel shots for long-term baseline pain reduction. See our comparison for a detailed breakdown.

Gel Shots vs. PRP

PRP (platelet-rich plasma) uses concentrated blood platelets that contain growth factors. The evidence for PRP in advanced OA is less established than for hyaluronic acid. PRP is not covered by Medicare or most insurance plans. Some early studies suggest combining PRP with hyaluronic acid may provide additional benefit, but this research is preliminary.

Who Should Not Get Gel Shots

Gel shots are not appropriate for everyone:

• Allergy to hyaluronic acid or avian products (some HA products are derived from rooster combs; newer products use bacterial fermentation)
• Active joint infection — the infection must be treated first
• Skin infection at the injection site
• Significant joint instability that requires surgical correction

Discuss your complete medical history with your doctor to confirm you are a safe candidate.

Frequently Asked Questions

Do gel shots work if you are bone on bone?

Yes, they work for many patients with bone-on-bone findings. The large claims database study found that 75% of Grade 4 (bone-on-bone) patients who received gel shots delayed knee replacement by 7 or more years. The most critical factor is accurate injection placement using imaging guidance. If you tried gel shots without imaging guidance and they did not help, consider trying again with fluoroscopic or ultrasound guidance.

How many gel shots can you get in a lifetime?

There is no lifetime limit on gel shots. They can be repeated every 6 to 12 months as long as they continue to provide benefit. Some patients have received gel shots annually for 10 or more years. Unlike cortisone, repeated hyaluronic acid injections have not been shown to damage cartilage.

Do gel shots hurt?

Most patients rate the discomfort as mild — similar to a blood draw or flu shot. The use of a local anesthetic at the skin before the injection helps minimize discomfort. Imaging-guided injections may involve slightly more time in the procedure room but are not more painful than blind injections. Some patients experience mild soreness or swelling for 24 to 48 hours after the injection.

How soon do gel shots start working?

Unlike cortisone (which provides relief within days), gel shots typically take 3 to 6 weeks to reach full effect. Some patients notice gradual improvement starting in week 2 or 3. If you see no improvement by 8 weeks, discuss next steps with your doctor. Keep in mind that maintaining your exercise program during this period maximizes the benefit.

Are gel shots better than knee replacement?

They are not better or worse — they serve different purposes at different stages. Gel shots are a non-surgical treatment that can delay or prevent the need for surgery. When gel shots (and other conservative treatments) no longer provide adequate relief, knee replacement becomes the appropriate next step. Many patients use gel shots successfully for years before eventually deciding on surgery, while others never need surgery at all.

---
